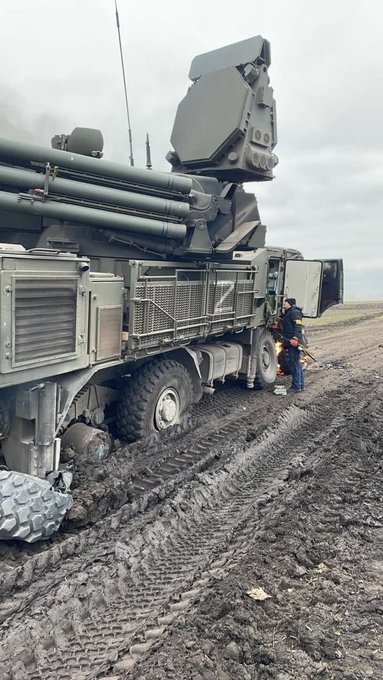

This is a thread that will explain the implied poor Russian Army truck maintenance practices based on this photo of a Pantsir-S1 wheeled gun-missile system's right rear pair of tires below & the operational implications during the Ukrainian mud season.馃У
1/
Mar 2, 2022 路 11:26 PM UTC
2,011
21,145
7,364
71,003

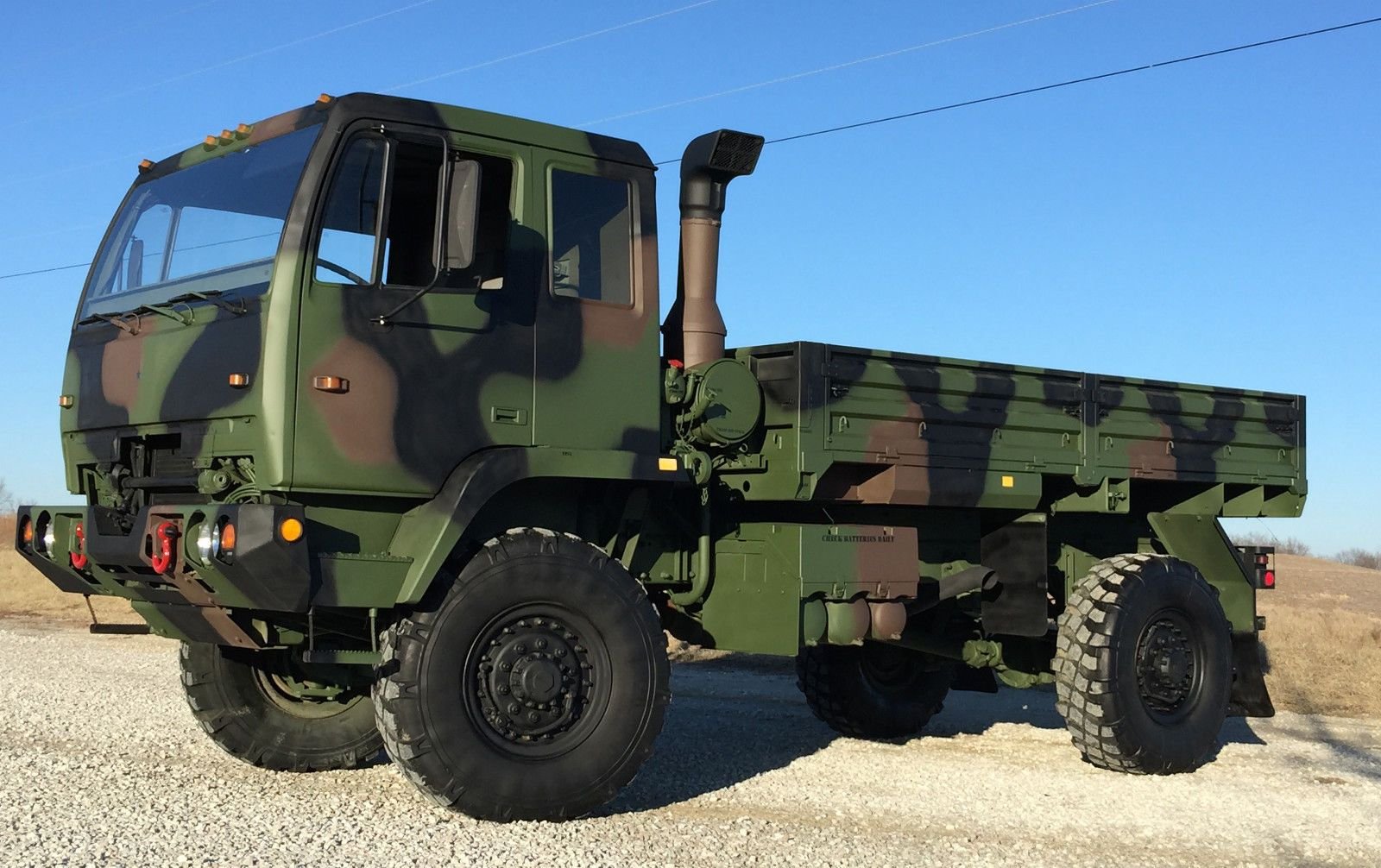

For the sin of being the new guy, I was the DCMA quality auditor in charge of the US Army's FMTV "vehicle exercise program" at the contractor manufacturing them from the Mid-1990's to the mid-2000's Then we got more new guys.
Short form: Military trucks need to be...
2/
74
655
41
8,641
...turned over and moved once a month for preventative maintenance reasons.
In particular you want to exercise the central tire air inflation system (CTIS) to see if lines have leaks or had insect/vermin nests blocking the system.

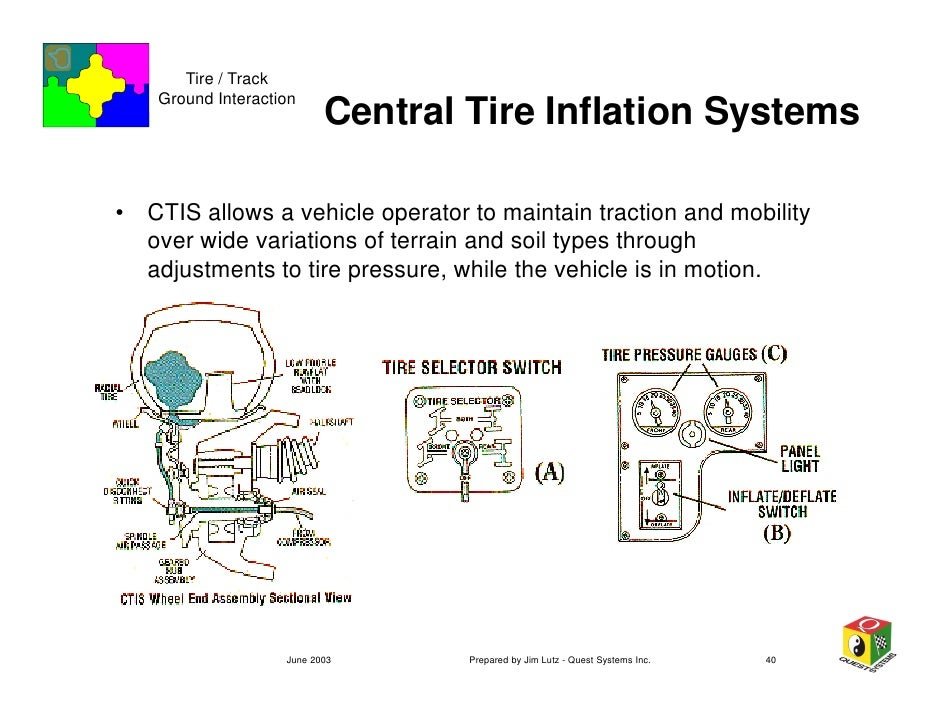

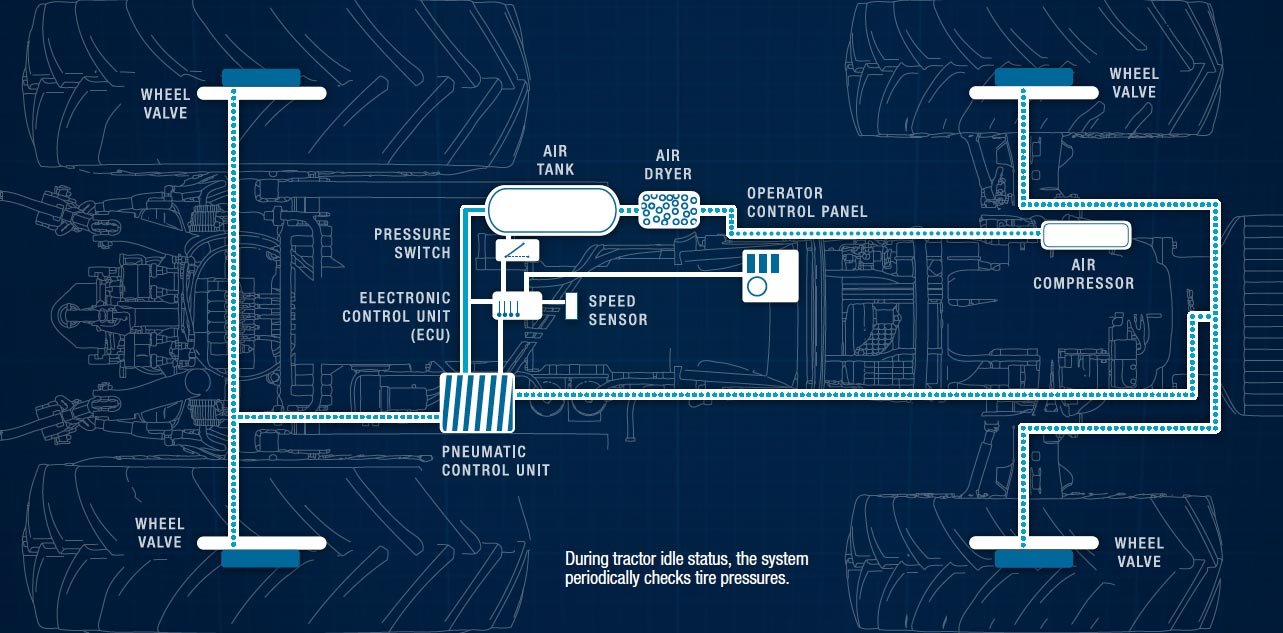

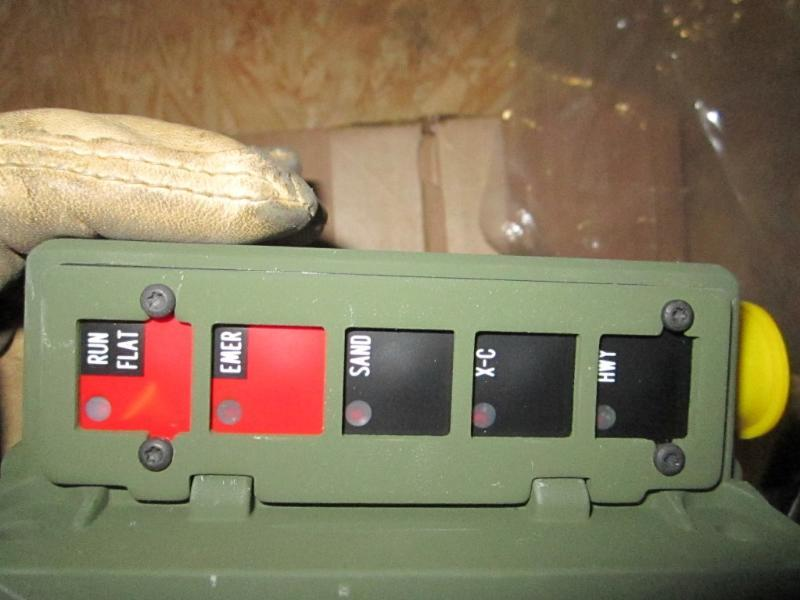

CTIS Controller & CTIS diagram馃憞馃憞
3/
35
539
10
8,135
One of the biggest reasons for the repositioning, per TACOM logistic Representatives, was that direct sunlight ages truck tires.
The repositioning of Trucks in close parking prevents a lot of this sun rotting and cycling the CTIS keeps the tire sidewalls supple.
4/
26
513
21
7,534
When you leave military truck tires in one place for months on end. The side walls get rotted/brittle such that using low tire pressure setting for any appreciable distance will cause the tires to fail catastrophically via rips.
See early video:
5/
28-02:
Russian Pantsir-S1 SHORAD abandoned by its crew and seized by Ukrainian forces.
Show this thread
73
1,265
61
10,744

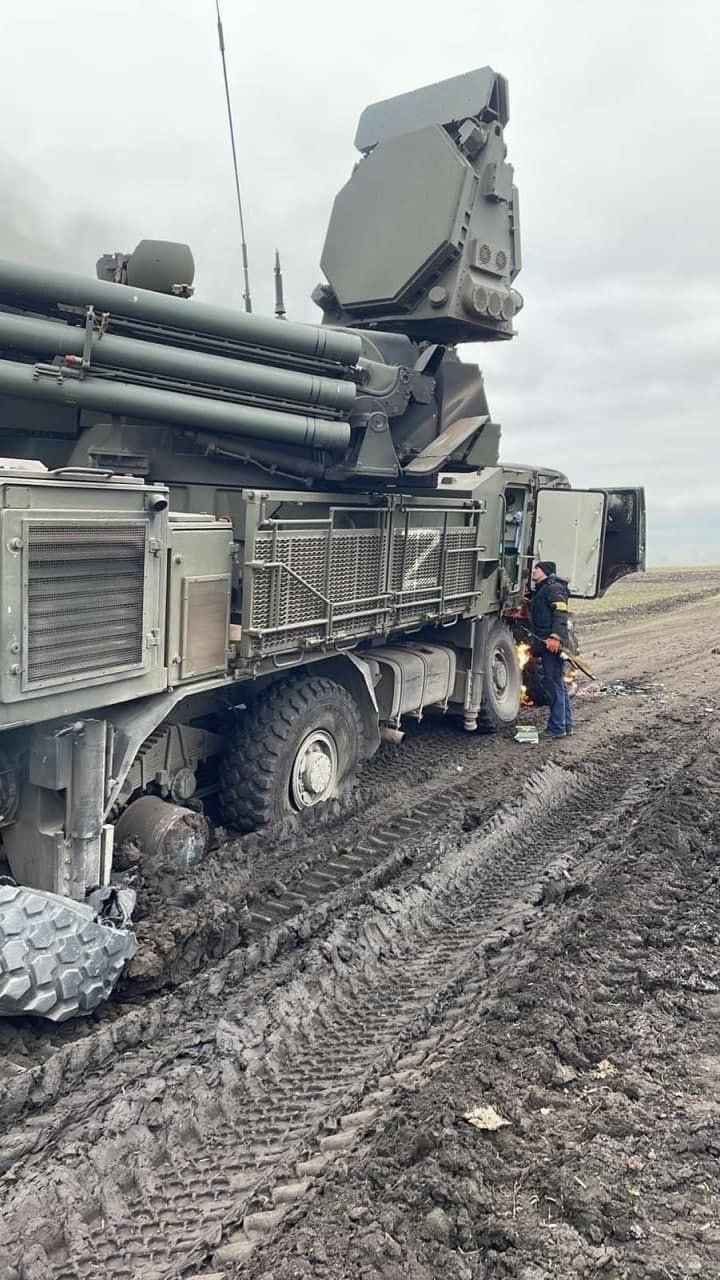

Now look at the same Pantsir-S1 tire sidewalls after the Ukrainians tried to tow or drive it out of the mud.
The right rear tire fell apart because the rips in it were too big for the CTIS to keep aired up.
No one exercised that vehicle for 1 year
6/
46
956
48
10,130
There is a huge operational level implication in this. If the Russian Army was too corrupt to exercise a Pantsir-S1. They were too corrupt to exercise the trucks & wheeled AFV's now in Ukraine.
The Russians simply cannot risk them off road during the Rasputitsa/Mud season
7/
80
1,678
130
13,176

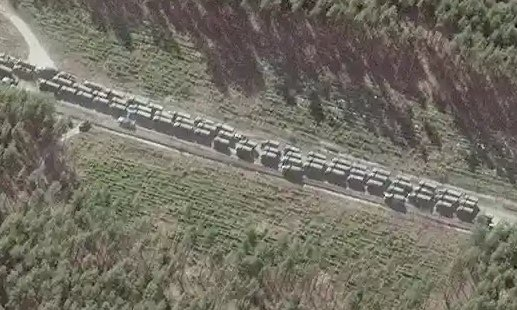

And there is photographic evidence of this.
There are 60(+) Russian army trucks crowded & parked on this raised road bed to avoid the fate of the mud-bogged Pantsir-S1.
8/
139
1,211
115
12,208
Given the demonstrated levels of corruption in truck maintenance. There is no way in h--l that there are enough tires in the Russian army logistical system.
So their wheeled AFV/truck park is as road bound as Russian Army columns were in the 1st Russo-Finnish War.
9/
40
1,203
63
11,916
What that means is that as long as and where ever the Spring Rasputitsa is happening. The Russian Army attack front is three wheeled AFV's wide.
When the Ukrainians can block the road with ATGM destroyed vehicles. They can move down either side of the road like Fins in 1939
10/
71
1,238
109
12,433
